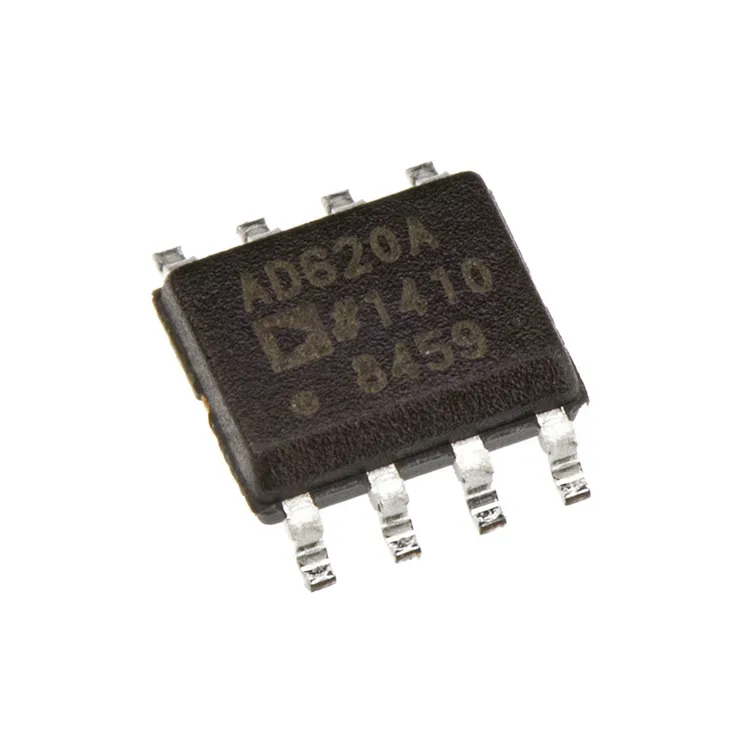

AD620ARZ

مشخصات فنی AD620ARZ

• ابعاد 1 میلی‌متر
• Manufacturer

  Analog Devices

• Product Category

  Instrumentation Amplifiers

• RoHS

  ✔️

• Package / Case

  SOIC-8

• Mounting Style

  SMD/SMT

• G5- InAmp Series

  AD620

• G5- Number of Channels

  1 Channel

• g5-3-db-bandwidth

  1 MHz

• g5 SR - Slew Rate

  1.2 V/us

• g5 CMRR - Common Mode Rejection Ratio

  93 dB

• g5 Ib - Input Bias Current

  500 pA

• g5 Vos - Input Offset Voltage

  30 uV

• g5-supply-voltage-max

  18 V

• g5-supply-voltage-min

  2.7 V

• g5-operating-supply-current

  900 uA

• Minimum Operating Temperature

  – 55 °C

• Maximum Operating Temperature

  + 125 °C

• Amplifier Type

  Instrumentation Amplifier

• Brand

  Analog Devices

• Dual Supply Voltage

  +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V

• Gain V/V

  1 V/V to 10000 V/V

• Height

  1.5 mm

• Length

  5 mm

• Maximum Dual Supply Voltage

  +/- 18 V

• Maximum Input Resistance

  10 GOhms

• Minimum Dual Supply Voltage

  +/- 2.3 V

• Operating Supply Voltage

  2.3 V to 18 V

• Pd - Power Dissipation

  650 mW

• PSRR - Power Supply Rejection Ratio

  140 dB

• Supply Type

  Dual

• Vcm - Common Mode Voltage

  2.3 V to 18 V

• Width

  4 mm

• Unit Weight

  0.019048 oz
