BSP170P-VB

مشخصات فنی BSP170P-VB

• ابعاد 1 میلی‌متر
• Manufacturer

  Infineon

• RoHS

  ✅

• Mounting Style

  SMD/SMT

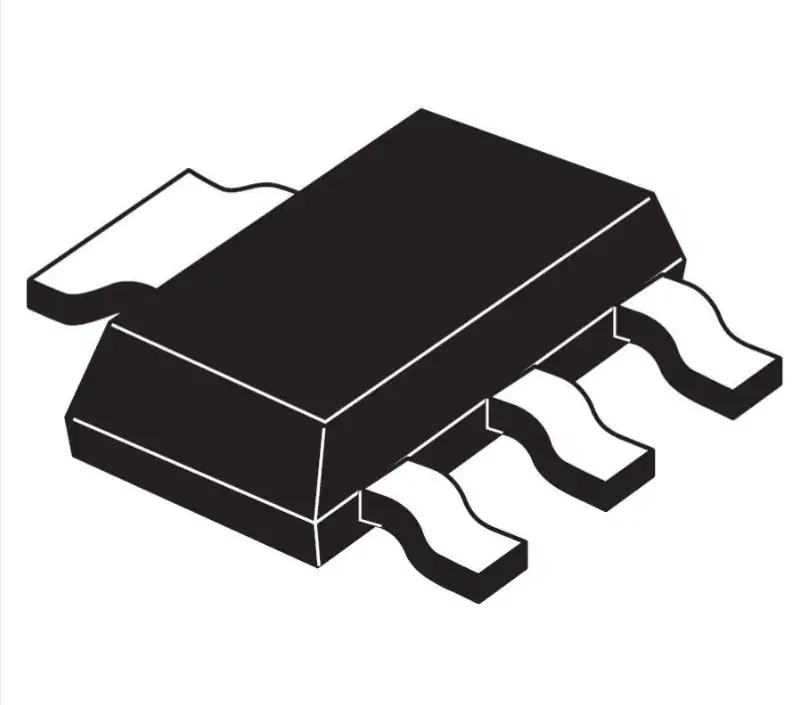

• Package / Case

  SOT-223-4

• G41- Continuous Drain Current (Id)

  1.9 A

• G41- Drain Source On Resistance (RDS(on)@Vgs,Id)

  239 mOhms

• G41- Transistor Type

  1 P-Channel

• G41- Drain Source Voltage (Vdss)

  60V

• Category

  Transistors/Thyristors/MOSFETs

• Description

  MOSFETs P-Ch -60V -1.9A SOT-223-3

• Minimum Operating Temperature

  – 55 °C

• Maximum Operating Temperature

  + 150 °C

• Transistor Polarity

  P-Channel

• Number of Channels

  1 Channel

• Power Dissipation (Pd)

  1.8 W

• Vgs - Gate-Source Voltage

  – 20 V, + 20 V

• Vgs th - Gate-Source Threshold Voltage

  2.1 V

• Qg - Gate Charge

  10 nC

• Channel Mode

  Enhancement

• Qualification

  AEC-Q101

• Packaging

  MouseReel

• Brand

  Infineon Technologies

• Configuration

  Single

• Fall Time

  60 ns

• Forward Transconductance - Min

  1.3 S

• Height

  1.6 mm

• Length

  6.5 mm

• Product Type

  MOSFETs

• Rise Time

  28 ns

• Series

  BSP170

• Factory Pack Quantity

  1000

• Subcategory

  Transistors

• Typical Turn-Off Delay Time

  92 ns

• Typical Turn-On Delay Time

  14 ns

• Width

  3.5 mm

• Part # Aliases

  SP001058608 BSP170PH6327XTSA1

• Unit Weight

  112 mg
