LTV-217-TP1-B-G

مشخصات فنی LTV-217-TP1-B-G

• ابعاد 1 میلی‌متر
• Manufacturer

  Lite-On

• Product Category

  Transistor Output Optocouplers

• G2- Opto Series

  LTV-2X7

• RoHS

  ✔️

• Mounting Style

  SMD/SMT

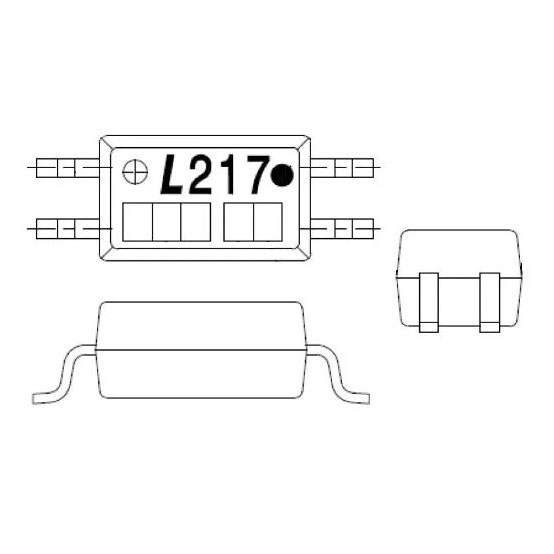

• Package / Case

  SSOP-4

• g2 Number of Channels

  1 Channel

• G2- Isolation Voltage

  3750 Vrms

• G2- Output Type

  NPN Phototransistor

• G2- Current Transfer Ratio - Min

  130 %

• G2- Current Transfer Ratio - Max

  260 %

• G2- If - Forward Current

  50 mA

• G2- Vf - Forward Voltage

  1.4 V

• G2- Maximum Collector Emitter Voltage

  80 V

• G2- Maximum Collector Current

  50 mA

• G2- Maximum Collector Emitter Saturation Voltage

  400 mV

• G2- Rise Time

  18 us

• G2- Fall Time

  18 us

• G2- Vr - Reverse Voltage

  6 V

• G2- Pd - Power Dissipation

  200 mW

• Minimum Operating Temperature

  – 55 °C

• Maximum Operating Temperature

  + 110 °C

• Brand

  Lite-On

• Collector-Emitter Breakdown Voltage

  80 V

• Current Transfer Ratio

  130 %

• Height

  2 mm

• Length

  4.4 mm

• Width

  2.6 mm

• Unit Weight

  0.021043 oz
