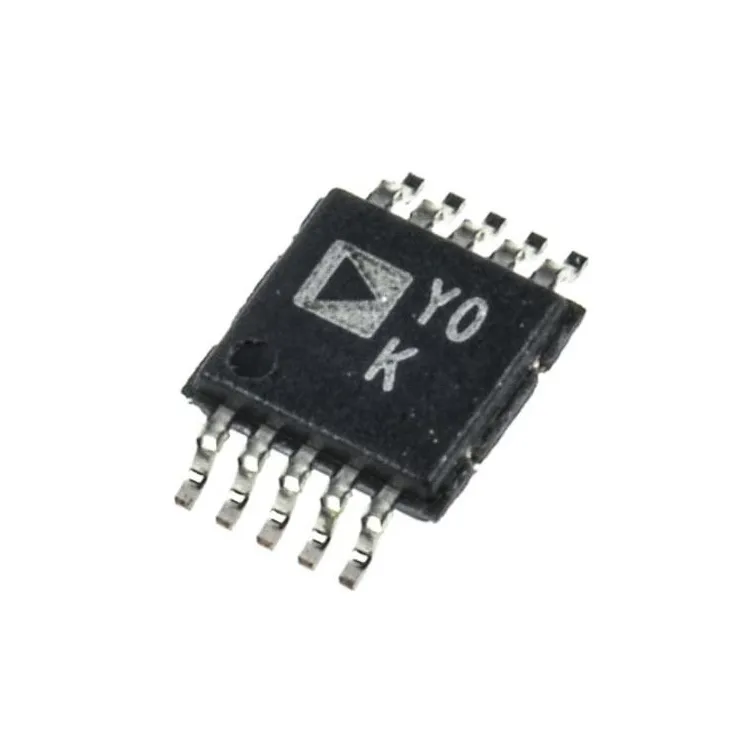

AD8253ARMZ

مشخصات فنی AD8253ARMZ

• ابعاد 1 میلی‌متر
• Manufacturer

  Analog Devices

• Product Category

  Instrumentation Amplifiers

• Package / Case

  MSOP-10

• RoHS

  ✔️

• Mounting Style

  SMD/SMT

• G5- InAmp Series

  AD8253

• G5- Number of Channels

  1 Channel

• g5-3-db-bandwidth

  10 MHz

• g5 SR - Slew Rate

  20 V/us

• g5 CMRR - Common Mode Rejection Ratio

  100 dB

• g5 Ib - Input Bias Current

  50 nA

• g5 Vos - Input Offset Voltage

  150 uV

• g5-supply-voltage-max

  15 V

• g5-supply-voltage-min

  5 V

• g5-operating-supply-current

  4.6 mA

• Minimum Operating Temperature

  – 40 °C

• Maximum Operating Temperature

  + 85 °C

• Packaging

  Tube

• Amplifier Type

  Instrumentation Amplifier

• Bandwidth

  10 MHz

• Brand

  Analog Devices

• Dual Supply Voltage

  +/- 15 V

• Gain V/V

  1 V/V to 1000 V/V

• Height

  0.85 mm

• Length

  3 mm

• Maximum Input Resistance

  20 kOhms

• Operating Supply Voltage

  5 V to 15 V

• Supply Type

  Dual

• Vcm - Common Mode Voltage

  5 V to 15 V

• Voltage Gain dB

  60 dB

• Width

  3 mm

• Unit Weight

  143,200 mg
